Process Synchronization
Process Synchronization
1. What is
parallel processing?
Simultaneous
use of more than one CPU
to execute
a program.
Ideally, parallel processing makes a program run faster because there
are more engines (CPUs) running it. In practice, it is often difficult to
divide a program in such a way that separate CPUs can execute different
portions without interfering with each other.
Most computers have just one
CPU, but some models have several. There are even computers with thousands of
CPUs. With single-CPU computers, it is possible to perform parallel processing
by connecting the computers in a network.
Parallel processing is also
called parallel computing
Note: that parallel
processing differs from multitasking,
in which a single CPU executes several programs at once.

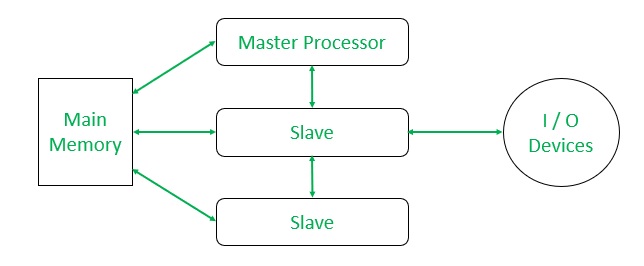

2. Explain the working of a master slave configuration in
a multiprocessor environment.
Master/slave is a model of communication
where one device or process has unidirectional control over one or
more other devices. In some systems a master is elected from a group of
eligible devices, with the other devices acting in the role of slaves
The primary advantage of this configuration is its
simplicity.
Disadvantages:
• Its
reliability is no higher than for a single-processor system because if the
master processor fails, the entire system fails.
• It can lead
to poor use of resources because if a slave processor should become free while
the master processor is busy, the slave must wait until the master becomes free
and can assign more work to it.
• It increases the number of interrupts because all
slave processors must interrupt the master processor every time they need
operating system intervention, such as for I/O requests.
3. How does a loosely coupled configuration of a
multiprocessing system work like?
The loosely
coupled configuration features several complete computer systems, each
with its own memory, I/O devices, CPU, and operating system. This configuration
is called loosely coupled because each processor controls its own
When a single processor fails, the others can continue to work independently. However, it can be difficult to detect when a processor has failed.
4. Explain how lack of process synchronization could lead to
a probable situation of starvation.
The success of process synchronization centers on the
capability of the operating system to make a resource unavailable to other
processes while it is being used by one of them. These “resources” can include
printers and other I/O devices, a location in storage, or a data file. In
essence, the used resource must be locked away from other processes until it is
released. Only when it is released is a waiting process allowed to use the
resource. A mistake could leave a job waiting indefinitely (starvation) or, if
it’s a key resource, cause a deadlock.
5.
What is a critical region?
A part of a program that must complete execution
before other process can have access to the resourced being used.
6. How can test and set lock mechanism be used to
get
synchronization? What are its drawbacks?
Test-and-set is a single, indivisible machine instruction known
simply as TS and was introduced
by IBM for its multiprocessing System 360/370 computers. In a single machine
cycle it tests to see if the key is available and, if it is, sets it to
unavailable.
The actual key is a single bit in a storage location
that can contain a 0 (if it’s free) or a 1 (if busy). We can consider TS to be
a function subprogram that has one parameter and returns one value, with the
exception that it takes only one machine cycle.
Therefore, a process (Process 1) would test the
condition code using the TS instruction before entering a critical region. If
no other process was in this critical region, then Process 1 would be allowed
to proceed and the condition code would be changed from 0 to 1. Later, when
Process 1 exits the critical region, the condition code is reset to 0 so
another process can enter. On the other hand, if Process 1 finds a busy
condition code, then it’s placed in a waiting loop where it continues to test
the condition code and waits until it’s free.
Although it’s a simple procedure to implement, and it
works well for a small number of processes,
It has two
major drawbacks.
1) When many processes are waiting to enter a critical
region, starvation could occur because the processes gain access in an
arbitrary fashion.
2) Waiting
processes remain in unproductive, resource-consuming wait loops, requiring
context switching. This is known as busy
waiting
7.
Explain the need for mutual exclusion.
The requirement for mutual exclusion when several jobs
were trying to access the same shared physical resources. The concept is the
same here, but we have several processes trying to access the same shared
critical region. We’ve looked at the problem of mutual exclusion presented by
interacting. Parallel processes using the same shared data at different rates
of execution. This can apply to several processes on more than one processor,
or interacting (codependent) processes on a single processor. In this case, the
concept of a critical region becomes necessary because it ensures that parallel
processes will modify shared data only while in the critical region.
In sequential computations mutual exclusion is
achieved automatically because each operation is handled in order, one at a
time. However, in parallel computations the order of execution can change, so
mutual exclusion must be explicitly stated and maintained. In fact, the entire
premise of parallel processes hinges on the requirement that all operations on
common variables consistently exclude one another over time.
8.
What do you understand by busy waiting? When does a process go into busy waiting?
BUSY
WAITING: a method by which processes,
waiting for an event to occur, continuously test to see if the condition has
changed and remain in unproductive, resource consuming wait loops.
When Process 1 exits the critical region, the
condition code is reset to 0 so another process can enter. On the other hand,
if Process 1 finds a busy condition code, then it’s placed in a waiting loop
where it continues to test the condition code and waits until it’s free.
9. How can wait and signal lock mechanism be used to
achieve synchronization?
WAIT and SIGNAL is a modification of test-and-set that’s designed to remove busy waiting.
Two new operations, which are mutually exclusive and become part of the process
scheduler’s set of operations, are WAIT and SIGNAL. WAIT is activated when the
process encounters a busy condition code. WAIT sets the process’s process
control block (PCB) to the blocked state and links it to the queue of processes
waiting to enter this particular critical region. The Process Scheduler then selects
another process for execution. SIGNAL is activated when a process exits the critical
region and the condition code is set to “free.” It checks the queue of
processes waiting to enter this critical region and selects one, setting it to
the READY state. Eventually the Process Scheduler will choose this process for
running. The addition of the operations WAIT and SIGNAL frees the processes
from the busy waiting dilemma and returns control to the operating system,
which can then run other jobs while the waiting processes are idle.
10. How can lock and key mechanism be used to
achieve synchronization?
Synchronization is sometimes implemented as a
lock-and-key arrangement: Before a process can work on a critical region, it
must get the key. And once it has the key, all other processes are locked out
until it finishes, unlocks the entry to the critical region, and returns the
key so that another process can get the key and begin work. This sequence
consists of two actions: (1) the process must first see if the key is available
and (2) if it is available, the process must pick it up and put it in the lock
to make it unavailable to all other processes. In wait and signal mechanism WAIT
is activated when the process encounters a busy condition code and SIGNAL is
activated when a process exits the critical region and the condition code is
set to “free.
11.
What are semaphores?
What are the operations that can be performed on a semaphore
In an operating system, a semaphore performs a similar
function: It signals if and when a resource is free and can be used by a
process. Dijkstra (1965) introduced two operations to overcome the process
synchronization problem we’ve discussed. Dijkstra called them P and V, and
that’s how they’re known today. The P stands for the Dutch word proberen (to
test) and the V stands for verhogen (to increment). The P and V
operations do just that: They test and increment. Here’s how they work. If we
let s be a semaphore variable, then the V operation on s is
simply to increment s by 1. The action can be stated as:
V(s): s:
= s + 1
Like the test-and-set operation, the increment
operation must be performed as a single indivisible action to avoid deadlocks.
And that means that s cannot be accessed by any other process during the
operation. The operation P on s is to test the value of s and, if
it’s not 0, to decrement it by 1.The action can be stated as:
P(s): If s >
0 then s: = s – 1
This involves a test, fetch, decrement, and store
sequence. Again this sequence must be performed as an indivisible action in a
single machine cycle or be arranged so that the process cannot take action
until the operation (test or increment) is finished. If s = 0, it means
that the critical region is busy and the process calling on the test operation
must wait until the operation can be executed and that’s not until s >
0
12. Using Producers and consumers problem show how
process co-operation is achieved. Or explain how
semaphores can be useful in solving problem of producer
and consumer.
There are occasions when several processes work
directly together to complete a common task.
Famous examples are the problems of producers and consumers,. In this case
requires both mutual exclusion and synchronization, and each is implemented by
using semaphores.
The classic problem of producers and consumers is
one in which one process produces some data that another process consumes
later. The synchronization between two of the processors (the cook and the
bagger) represents a significant problem in operating systems. The cook produces
hamburgers that are sent to the bagger (consumed). Both processors
have access to one common area, the hamburger bin, which can hold only a finite
number of hamburgers (this is called a buffer area). The bin is a necessary
storage area because the speed at which hamburgers are produced is independent
from the speed at which they are consumed.
Problems arise at two extremes: when the producer
attempts to add to an already full bin (as when the cook tries to put one more
hamburger into a full bin) and when the consumer attempts to draw from an empty
bin (as when the bagger tries to take a hamburger that hasn’t been made yet).
In real life, the people watch the bin and if it’s empty or too full the
problem is recognized and quickly resolved. However, in a computer system such
resolution is not so easy. Consider the case of the prolific CPU. The CPU can generate
output data much faster than a printer can print it. Therefore, since this
involves a producer and a consumer of two different speeds, we need a buffer
where the producer can temporarily store data that can be retrieved by the
consumer at a more appropriate speed.
Because the buffer can hold only a finite amount of
data, the synchronization process must delay the producer from generating more
data when the buffer is full. It must also be prepared to delay the consumer
from retrieving data when the buffer is empty. This task can be implemented by
two counting semaphores—one to indicate the number of full positions in the
buffer and the other to indicate the number of empty positions in the buffer. A
third semaphore, mutex, will ensure mutual exclusion between processes.
